AC-5100

Category:

Description

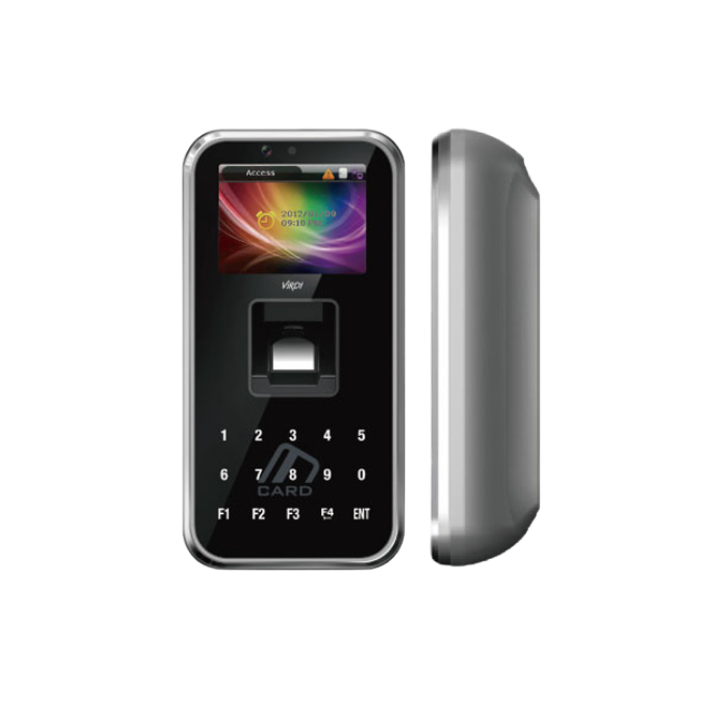

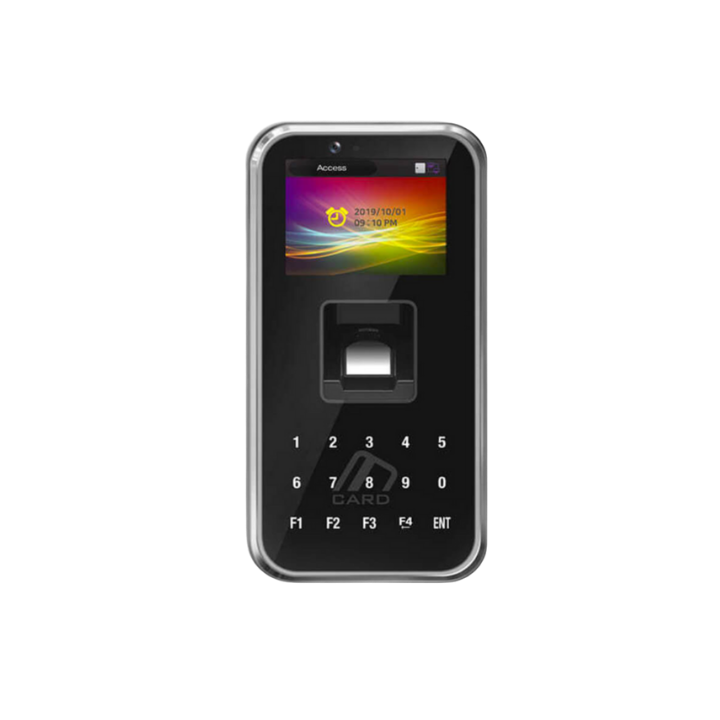

Virdi Access Control AC-5100 Features

IK-09 Vandal proof structure in AC-5100

Equipped with a vandal resistance housing, able to withstand a high level of impact.

The IK-09 Vandal Proof is a new product from the Virdi AC-5000IK series.

The IK-09 Vandal Proof is an indoor unit with a sleek and modern design. It’s perfect for commercial or residential use. The IK-09 is vandal resistant and comes with an ADB (Anti Dry Run) protection system that prevents the unit from starting up if it detects water in the compressor. The IK-09 also has an Auto Restart function which will restart the unit after a power outage of up to 2 hours, so you don’t have to worry about your home’s comfort if there’s ever an interruption in power supply.

IK-09 vandal proof
resistance housing, able to withstand a high level of impact.

IP65 Dust and Water Proof in AC-5100

Ingress protected enclosure keeping out dust moisture ensures faultless operation even under unfavorable conditions
Hence it is perfect for outdoor application

IP-65 DUST AND WATER PROOF

Live Finger Detection Technology in AC-5100

With our live finger detection technology, it can distinguish fake fingerprint made from various material including gelatin, rubber, silicon, glue, paper film and more

Live finger Technology

Virdi Access Control Distributor In Pakistan

The only authorized distributor of Virdi inside Pakistan is Iot Systems. We are authorzed partners with Virdi and have done numerous project with them.




Specification



Product Parameters Product Specification
Authentication Method Biometric
Dust/Water Resistance NO
Card(1:1)/(1:N) 20,000
Face(Base on one finger enrollment per user)(1:1) NO
Fingerprint(1:1) 40,000
Face(1:1) NO
Logs 64,000
Images 17,000
With Server TCP/IP
Other Bluetooth
Wireless LAN(Wi-Fi) NO
Wiegand OUT YES
RS232 YES
RS485 OSDP
Wiegand IN YES
LCD 2.8″ Color
Backlight YES
Embedded Camera YES
125KHz-EM(KHz-EM) YES
HID Prox NO
HID iclass(iC) NO
13.56MHz Smart Card YES
Keypad YES
Function Keys 10
Door Phone NO
FP Sensor (Platen Area) mm 16X20
Resolution 500dpi
Dimension (W)x(H)x(D)mm 88X175X43.5
Operating Temperature -20 to 60°C

Downloads

AC-5100 Datasheet

Feature

  • IK09 Vandal Proof Structure
  • IP65 Dust & Waterprrof
  • Up to 20,000 Users(1:1)/ 15,000(1:N)
  • Up to 40,000 Templates(1:1) 30,000(1:N)
  • Patented Fake Fingerprint Detection
