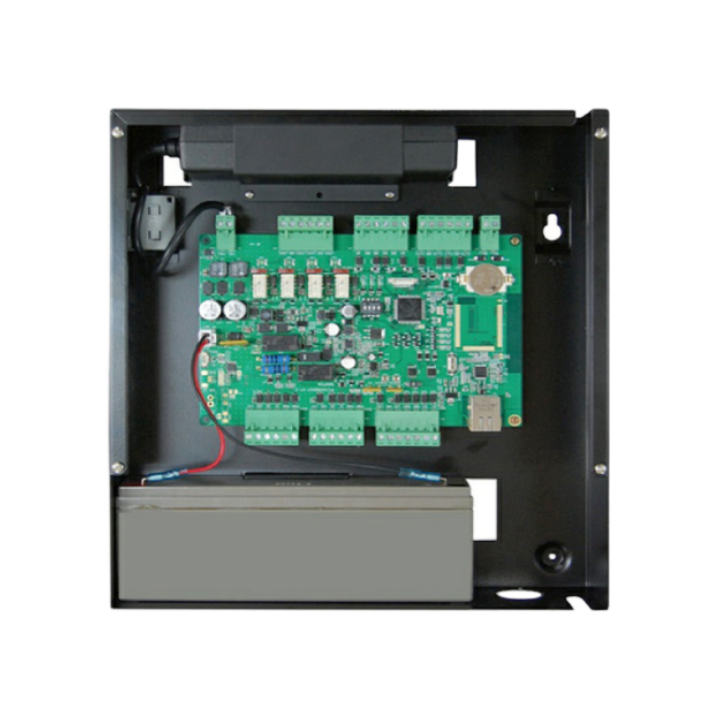

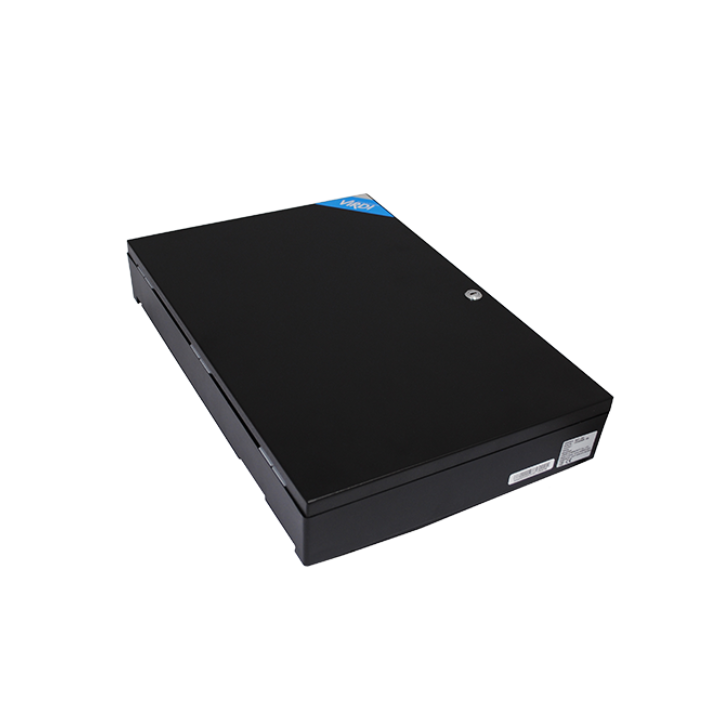

Virdi-MCP-040

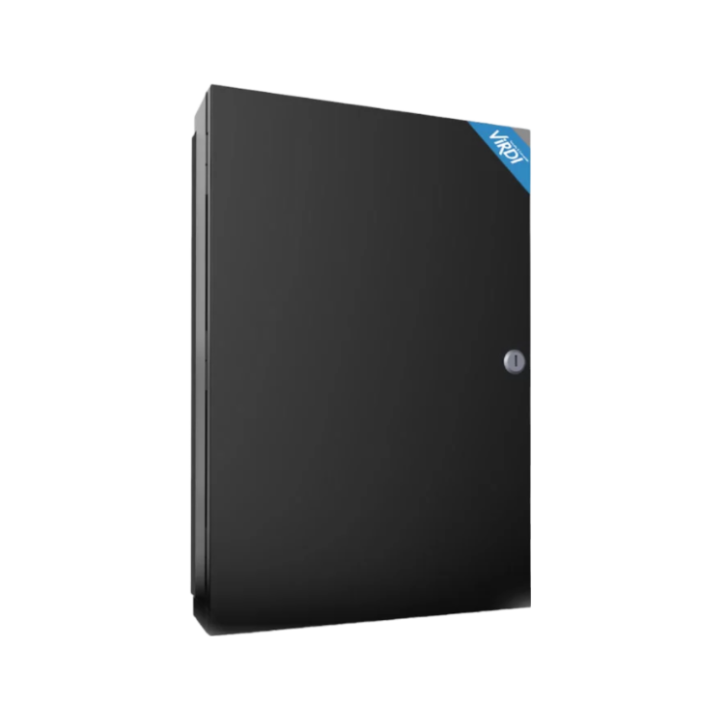

Virdi MCP-040

Category: Tags: ,

Description

Virdi Access Controller MCP-040 Features

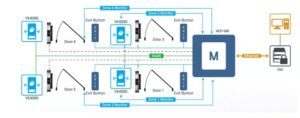

4 Door controller in Virdi MCP-040

The Virdi MCP-040 is a remote controller for 4 doors. It can be used to control the opening and closing of four doors simultaneously. The remote controller is easy to use and install, and it can be used with any type of door.

The Virdi MCP-040 is a high quality, four-door controller. It can be used as an access control device for up to 16 doors.

It has a built in LCD screen that displays the status of each door and which ones are open. The Virdi MCP-040 also has a buzzer alarm that alerts you when someone enters or exits the room.

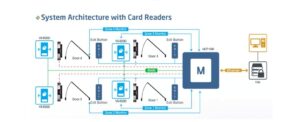

4-Door-Controller
4 Door Controller

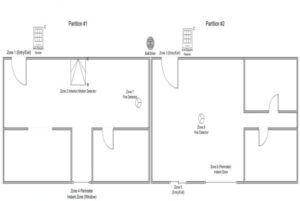

Virdi MCP-040 Compatiblity with 8 Zone Monitoring Input

The MCP-040 is compatible with sensors 8 Zone monitoring inputs and can be used for a variety of purposes.

If the partition is high on security and you need to control the door via multiple sensor inputs then one can enable 8 zone input via Alpeta/UNIS.

8-Zone-monitoring-inputs
8 Zone monitoring inputs

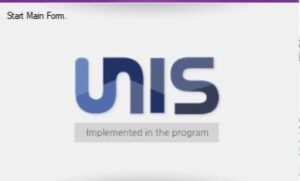

Remote Setting UNIS Server in Virdi MCP-040

The Virdi MCP-040 is a remote setting UNIS server. It is the first of its kind and can be remotely set to control various parameters.

The Virdi MCP-040 provides an innovative solution for any type of industrial application where it is necessary to control a process remotely.

Remote-Setting-Via-UNIS-Server
Remote Setting Via UNIS Server

TCP/IP Communication to UNIS Server used in Virdi MCP-040

TCP/IP Communication is used for communication between the Virdi MCP-040 and a UNIS server.

The TCP/IP protocol is a set of rules that govern how computers communicate with each other. The protocol defines the format of messages, how they are framed, and how they are sent over an internet connection.

MCP-040-TCP-IP-Enabled
TCP/IP Enabled

4 Wiegand Input in Virdi MCP-040

The Virdi MCP-040 4-Wiegand Input is a card reader that can read four different types of cards, including proximity cards. It also has the ability to read and write data on the card. This makes it ideal for use in high security applications such as access control systems.

The Virdi MCP-040 has a large LCD display with an intuitive menu system. The Virdi MCP-040 can be configured for single or double door operation and can be used in both indoor and outdoor applications.

4-Wiegand-Input
4 Wiegand Input

Virdi Access Control Distributor In Pakistan

The only authorized distributor of Virdi inside Pakistan is Iot Systems. We are authorized partners with Virdi and have done numerous project with them.




Specification



Product Parameters Product Specification
Model MCP-040
Schedules 1,024
Event Logs 51,200
MAX Users 50,000
Lock Interface 4 Locks
Zone Interface 8 Zones(Each Port Dual Use)
Bell Interface Monitored Bell/Siren Bell(1 Port)
CPU 32Bits RISC Processor(ARM Cortex-M3 Core)
LAN 10/100M Ethernet (Auto Detecting)
Back Up Battery 12V/7A(Optional)
Memory 8MB Serial Flash
Communication Port RS-485 Reader Port/Wiegand Input Ports
Programmable Inputs/Programmable Outputs
Power Adapter DC 15V/6A
Display Status LED
Operating Temperature -20 to 60°C/Lower than 90% RH

Downloads

MCP-040 Datasheet

Feature

  • 4 Door controller
  • Compatible with sensors 8 Zone monitoring inputs
  • Zone Alarm Monitoring
  • Remote Setting UNIS Server + Web Server
  • TCP/IP Communication to UNIS Server and Web server
  • Detachable Terminal Blocks
  • Back Up Battery 12V/7A(Optional)
  • 4 Wiegand Input
  • Supervised Bell Output
