UBio-X Pro2

Category:

Description

Virdi Access Control UBio X-Pro2 Features

Easy Face Pre-Enrollment in UBio X-Pro2

VirdiUBioXPro2 is an easy face pre-enrollment software for the facial recognition industry. It provides a simple web interface to upload and pre-enroll faces.

AI has been used in the field of facial recognition for a long time now. But now, with VirdiUBioXPro2, it’s easier than ever before to pre-enroll faces. The system is simple and easy to use, which makes it perfect for beginners or those who are not too tech savvy.

Easy-Face-Pre-Enrollemnt
Easy Face Pre-Enrollment

High Performance Camera in UBio X-Pro2

The algorithm is able to recognize faces with high accuracy and it is also able to recognize faces with different expressions.

This algorithm can be used in security systems and also in video conferencing systems.

The VirdiUBioXPro2 is a high performance facial recognition algorithm that can be used in various applications. It is a robust and scalable solution that can be deployed to detect, identify, and track people in real-time. The algorithm offers the following features:

– High accuracy of recognition: The VirdiUBioXPro2 has an accuracy of 99.8%.

– Real time detection: The algorithm detects faces in real time and does not need to scan through a video frame by frame to find faces.

– Scalable solution: The VirdiUBioXPro2 can process up to 20,000 frames per second (fps) on one server with 16 cores and up to 40,000 fps on two servers connected with 10 GbE networks.

– Robust environment: It is resistant to variations of lighting conditions due its ability to detect faces under varied lighting conditions.

– Robust against backgrounds:

High Performance Camera
High Performance Camera

End User Mobile Registration in UBio X-Pro2

VirdiUBioXPro2 is a mobile user registration platform that is used for the registration of new users on access control unit.

The platform is designed to allow users to create an account in just a few seconds. The process starts with the user entering their name and email address. They must then provide a password, which can be changed at any time by the user. The application also provides an option for two-factor authentication, which will require a code sent to the user’s phone number before they are able to log in again. Users can also upload their profile picture from their camera or photo album, or choose from one of the pre-selected images provided by VirdiUBioXPro2.

End User Mobile Registration
End User Mobile Registration

Fake Face Detection Technology in UBio X-Pro2

The VirdiUBioXPro2 is the world’s first anti-spoofing face detection technology. This new AI-based technology can detect fake faces, liveness detection and anti-spoofing function.

The VirdiUBioXPro2 is capable of detecting fake faces with a high accuracy rate. It also has an anti-spoofing function which can detect spoofed images in real time and block them from being used to create fake faces.

Fake Face Detection Technology
Fake Face Detection Technology

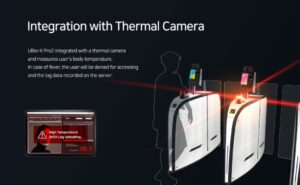

Integration with Thermal Camera in UBio X-Pro2

Virdi Ubio X-Pro 2 is able to integrate with a thermal camera to extend its application.

This makes it useful especially looking at this application which use in walk through gate, so Thermal Integration will be necessary to provide extra security.

There is no walk through device to date that integrate with Virdi Ubio X-Pro 2

Integration with Thermal Camera
Integration with Thermal Camera

Virdi Access Control Distributor In Pakistan

The only authorized distributor of Virdi inside Pakistan is Iot Systems. We are authorized partners with Virdi and have done numerous project with them.




Specification



Product Parameters Product Specification
Authentication Method Biometric
Dust/Water Resistance NO
Card(1:1)/(1:N) 500,000
Face(Base on one finger enrollemnt per user)(1:1) 20,000
Fingerprint(1:1) 1,000,000
Face(1:1) 20,000
Logs 10,000,000
Images 20,000
With Server TCP/IP
Other SD Card
Wireless LAN(WI-Fi) NO
Wiegand OUT Optional
RS232 YES
RS485 YES
Wiegand IN YES
LCD 5″ Color Touch
Backlight YES
Embedded Camera Dual
125KHz-EM(KHz-EM) YES
HID Prox YES
HID iclass(iC) YES
13.56MHz Smart Card YES
Keypad Touch Screen
Function Keys SOFT
Door Phone NO
FP Sensor (Platen Area) mm 15.5×19
Resolution 500dpi
Dimension (W)x(H)x(D)mm 149.7x208x56.4
Operating Temperature -20 to 55°C

Downloads

UBio-X Pro2 Datasheet

Feature

  • Walk through (Non-cooperative) method for Face Recognition
    at a Distance up to 3m
  • Liveness Detection by distinguishing actual people
  • Anti-spoofing attacks against photos, videos & 3D masks
  • Using Camera or Mobile Phone Pictures, Easy Face Enrollment
  • Mask Detection Function
  • Fever Detection combined with Face Recognition system
  • High-Speed Matching algorithm

    • Face 1:20,000 Templates < 1 sec
    • Fingerprint 1:200,000 Templates < 1 sec
  • Up to 20,000 (1Face/1User)
  • Up to 500,000 (1Finger/1User)
  • Up to 25,000 Lux
  • Patented Fake Fingerprint Detection
