Virdi-Ubio X-Pro

UBio-X Pro

Category:

Description

Virdi Access Control UBio X-Pro Features

Camera in UBio X-Pro

Virdi Ubio X-Pro is equipped with high definition camera to provide fastest matching speed while maintaining the highest accuracy.

Camera-Ubio-X-Pro
Camera Ubio X-Pro

Face Recognition Feature in UBio X-Pro

Virdi Ubio X-Pro is the world’s best performing face recognition terminal.

Virdi Ubio X-Pro is a face recognition app that scans the user’s face and then matches it to a database of faces.

The app can scan faces in real time, in two seconds or less. It is able to identify people by their eyes, nose and mouth. The app also has a built-in database of over 2 million faces, which means it can identify people even if they are not in the database.

The Virdi Ubio X-Pro app has many uses such as identifying people at concerts or events, identifying unknown visitors at your home or business and finding lost pets.

Face-Recognition-Ubio X-Pro
Face Recognition Ubio X-Pro

Highest Performance Algorithm Feature in UBio X-Pro

Virdi Ubio X-Pro is a new algorithm that has been designed for face recognition. It is the first one to outperform the state of the art (SOTA) performance.

The Virdi Ubio X-Pro algorithm has been tested on three different datasets: The Labeled Faces in the Wild (LFW), Yale B and Caltech 101, with promising results.

The Labeled Faces in the Wild is a dataset that contains over 13,000 images of people from all over the world, taken in uncontrolled environments like airports and shopping malls. The Yale B dataset includes 3,700 images of faces belonging to students and faculty members at Yale University. Caltech 101 includes 1,000 images of faces belonging to students and staff at Caltech University.

In all three cases Virdi Ubio X-Pro was able to outperform SOTA by an average margin of 5%. This means that it will be able to recognize more faces

Highest-Performance-Algorithm
Highest Performance Algorithm

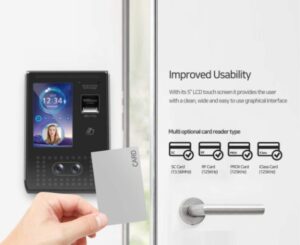

Improved Usability in UBio X-Pro

Virdi Ubio X-Pro has multi card system, means multiple types of cards can be used with it.
For example iClass cards, PROX card, RF cards and SC Cards.

Improved-Usability
Improved Usability

Massive Memory in UBio X-Pro

Ubio X-Pro equipped with massive memory, it has 1.0GHz quad core processor and with it built-in large memory that is used to store 1,000,000 templates, 10,000,000 event logs, and 20,000 image logs of each transaction.

Massive-Memory-in-Ubio-X-Pro
Massive Memory in Ubio X-Pro

Virdi Access Control Distributor In Pakistan

The only authorized distributor of Virdi inside Pakistan is Iot Systems. We are authorized partners with Virdi and have done numerous project with them.




Specification



Product Parameters Product Specification
Authentication Method Biometric
Dust/Water Resistance NO
Card(1:1)/(1:N) 500,000
Face(Base on one finger enrollemnt per user)(1:1) 200,000
Fingerprint(1:1) 1,000,000
Face(1:1) 1,000,000
Logs 10,000,000
Images 20,000
With Server TCP/IP
Other SD Card
Wireless LAN(Wi-Fi) Optional
Wiegand OUT YES
RS232 YES
RS485 YES
Wiegand IN YES
LCD 5″ Color Touch
Backlight YES
Embedded Camera Dual
125KHz-EM(KHz-EM) YES
HID Prox YES
HID iclass(iC) YES
13.56MHz Smart Card YES
Keypad Touch Screen
Function Keys SOFT
Door Phone NO
FP Sensor (Platen Area) mm 15.5×19
Resolution 500dpi
Dimension (W)x(H)x(D)mm 149.7x208x89.7
Operating Temperature -20 to 60°C

Downloads

UBio-X Pro

Feature

  • Collaborative close-up method for Face Recognition
  • High-Speed Matching algorithm

    • Fingerprint 1:200,000 Templates < 1 sec
    • Face 1:20,000 Templates < 1 sec
  • Up to

    • 500,000 Users(1:1 Finger)
    • 200,000 Users(1:1 Face)
  • Up to 30,000 Lux
  • Latest Android-based intuitive GUI with 5″ Touch LCD
  • Patented Fake Fingerorint Detection
