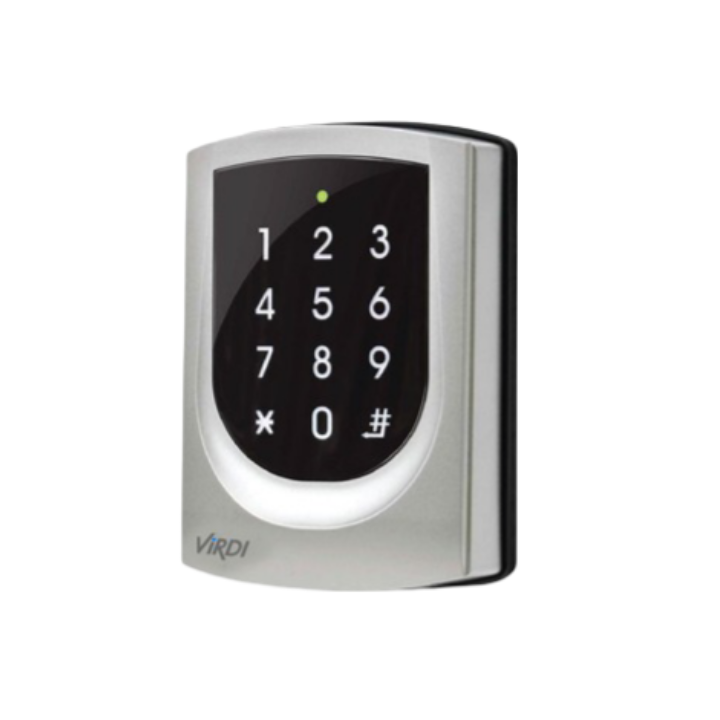

VS-R50D

Category:

Description

Virdi Access Control VS-R50D Features

Touch Keypad

The Touch Keypad IP Access Controller is a device which is built-in with VirdiVSR50D. It can be used to control access to the door or gate. The device also has a function of controlling the door’s opening and closing as well as its locking and unlocking. This device can be accessed through any touch keypad, which makes it convenient for users.

Sleek Touch Panel

The VirdiVSR50D is an ultra-slim and palm-sized touch panel for the latest in medical technology. It is sleek, reliable, and easy to use.

It is a perfect fit for any hospital that needs a touch panel that can withstand heavy use in the medical industry.

Real Time Event Log Integration

The VirdiVSR50D is a high-speed access control reader made for real-time event log integration.

The VirdiVSR50D is a device that can be used to log events in real time. It’s a standalone device that can be used for various applications.

Real-time event log integration is possible with the Virdi. The VirdiVSR50D has an input/output port and an Ethernet connection, which allows it to connect to other devices. The Virdi also has a built-in web server, which allows it to store data on its own server, as well as allow data retrieval from the web server.

Mange Two Access Control Readers

The VirdiVSR50D is a single controller unit that can manage two access controls readers. It is compatible with all major access control brands and can be integrated with a variety of security systems.

The VirdiVSR50D was designed to be used in small and medium-sized businesses.

The VirdiVSR50D is designed to provide easy installation and configuration.

Virdi Access Control Distributor In Pakistan

Authorize distributor of Virdi inside Pakistan is Iot Systems. We are authorize partners with Virdi and have done numerous project with them.




Specification

Product Parameters Product Specification
Communication Interface RS-485 and TCP/IP, 125KHz/ 13.56MHZ/ Dual Band
User Capacity 16,000
Event Log 32,000
Access Mode Card Only
Card or PIN
Card and PIN
Operating Temperature -20°C to +65°C
Power Voltage 9-24VDC/ Poe (Optional)
Power Consumption <5W
Weight(g) PC : 150 +or- 10/ Metal Housing: 400 +or- 10
Indicator LED (Bi-Colour), Buzzer
Housing Material PC/ PC + Metal (Optional)
Extended Port Tamper Switch/ Tamper Output/ WG in Port WG/ WG out Port/ Buzzer
Dimension PC 110(H)x79(W)x30(H)
UID Bits 64
Color Silver Black

Downloads

VS-R50D Datasheet

Features

  • Touch Keypad IP Access Controller is built in
  • palm-sized and sleek lit touch panel
  • One bi-color led and one beeper for identification
  • Real-time event log integration is possible
  • A single controller unit can manage two access controls
  • Reader Mode Supported
  • Invisible Keypad
  • Dual-Band Frequency
  • Auto-Alarm Function
