Soyal-AR-321-H

AR-321-H

Category: Tags: , ,

Description

Soyal AR-321-H Features
Vandal Resistant Proximity Controller

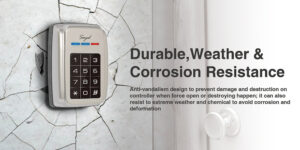

Durable and Corrosion Resistance in Soyal AR-321-H

Soyal AR-321-H has anti-vandalism design to prevent damage and destruction on controller when force open or destroying happen; it can also resist to extreme weather and chemical to avoid corrosion and deformation

Durable-Corrosion-Resistance
Durable Corrosion Resistance

3 SETS OF LED

LED 1 arming & disalarming/standby mode(BLUE)
LED 2 Power ON(BLUE)
LED 3 Access Granted(BLUE) / abnormal event: access denied & alarming(RED)

Soyal-3 Sets of LED
3 Sets of LED

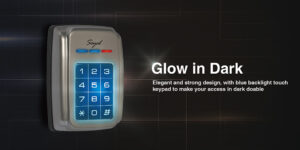

Glow in Dark in Soyal AR-321-H

The Soyal AR-321-H is a simple, elegant and strong design with a blue backlight touch keypad to make your access in dark doable.

The Soyal AR-321-H is a modern design with elegant and strong features. The backlight touch keypad allows you to access your device in dark without needing to turn on the light.

The Soyal AR-321-H is a sleek device with excellent features that make it stand out from the crowd of other smart phones in its price range.

Soyal-Glow-in-dark
Glow In Dark

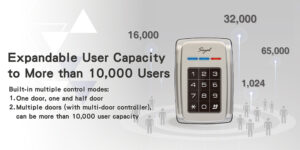

User Capacity in Soyal AR-321-H

Built-in multiple control modes:
1.One door, one and half door.
2.Multiple doors (with multi-door controller),
can be more than 10,000 user capacity.

Soyal-User Capacity
User Capacity

Soyal Access Control Distributor in Pakistan in Soyal AR-321-H

Soyal access control distributor is Iot Systems in Pakistan, Iot Systems are the first mover which brings the latest and most secure technologies introduced in Pakistan. An IT Company which has industry-specific expert which have sufficient support from brands that they provide and install




Specification

Product Parameters Product Specification
Frequency B(125kHz) / D(13.56MHz)
Standard 125kHz: ISO18000-2: EM4001 and EM4095 compatible
13.56MHz: ISO 14443 /ISO 7816-4 Mifare Ultralight, Classic, DESFire EV1, NFC (card simulation)
UID Bits 24-32(Adjustable)
Reading Range 125kHz: 3-7 cm;
13.56MHz: 1.3 cm
Power Consumption 9-24VDC, Less than 5W
Communication Interface RS-485/9600 bps(N,8,1)
Temperature -20℃ ~ +65℃
Digital Input 1 Egress(R.T.E.) / Door contact
Relay Output Lock Relay
Lock Relay Time ON/OFF, 0.1-600 Sec
Alarm Time Toggle, 1-600 Sec
Tamper Switch Limit Switch(Form C)
User Capacity M4/M8:3,000
M6:65,000
External Reader 1 Wiegand Port
Anti-Pass Back Yes(M4/M8 ONLY)
Lift Control 32 Floors, 3,000 Users
Serial Port YES
Dimension(mm) 114(L)X78(W)X33(H)
Ingress Protection IP56

Downloads

AR-321-H Datasheet

Features

  • Built-in hardware watchdog, real time clock, arming, force alarm, door close delay alarm, doorbell and duress code & output
  • Built-in door auto open time zone, holiday edit, door group & time setting. With multi-door control panel, support more time and group sets
  • Standalone / Networking / Support Cascade Structure
  • Each Controller can set up to 3 masters card
  • Support DESFire tags (Crypto comply with EAL4+)
  • Multiple access mode: card only, card or password, card and password
  • Silent Operation Mode: Push Button Mute and All Mute
  • Access control, lift control, time attendance, payroll, and SCADA: graphic monitoring & remote control function
  • Multi Output: Door lock output (0.1-600 sec. and toggle mode) & alarm output (1-600 sec)
