Soyal Access Control Distributor in Pakistan

Soyal access control distributor is Iot Systems in Pakistan, Iot Systems are the first mover which brings the latest and most secure technologies introduced in Pakistan. An IT Company which has industry-specific experts which has sufficient support from brands that they provide and install

Soyal AR-837-EA
Graphic Display Multi-Function Proximity Controller

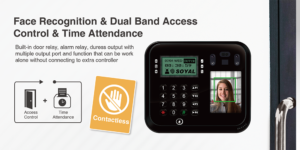

Face Recognition and Dual Band Access Control

Biometric technology has seen a massive increase in popularity over the last few years. It is now used in various industries to protect buildings and people. In the security industry, there are two main types of biometric technologies: facial recognition and fingerprint scanning.

Face recognition is a type of biometric technology that uses facial features to identify an individual. Facial recognition can be used in security systems to control access by identifying individuals based on their face. Soyal AR-837-EA is one such device that uses this type of technology for access control purposes.

Fingerprint scanning is another type of biometric technology that identifies individuals based on their fingerprints instead of facial features. This type of biometrics can be used for access control as well as for other tasks such as payment authentication or criminal identification among others.

Face Recognition and Dual Band Access Control
Face Recognition and Dual Band Access Control

Support when wearing FACE MASK

The Soyal AR-837-EA is a device that only responds to people wearing masks. The mask, which is designed by the company Soyal, contains a sensor and camera that can detect the person’s facial features and movements.

The Soyal AR-837-EA is a smart device that only responds to people wearing a face mask.

The Soyal AR-837-EA is a smart device that only responds to people wearing a face mask. This technology can be used in many ways and it’s not limited to the healthcare industry.

Support when wearing FACE MASK
Support when wearing FACE MASK

Communication Redundancy

The main difference between TCP/IP and RS-485 is that the former is a software and the latter is a hardware.

The Soyal AR-837-EA is an access control device that can communicate with other devices using TCP/IP or RS-485 protocols. The communication redundancy of these two protocols ensures that there are no failures in sending commands to the access control device, even if one of them fails.

Communication Redundancy
Communication Redundancy

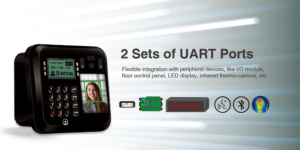

2 Sets Of UART Port

UART ports have become an indispensable accessory for access control devices. A good UART port should be reliable, easy to use and secure.

The Soyal AR-837-EA has all these features and more. It is a great choice for any access control device that needs to connect to any I/O module, basically it connects everyone to the outside world.

2 Sets Of UART Port
2 Sets Of UART Port

Anti-Spoofing Detection

The Soyal AR-837-EA is a new anti-spoofing detection system for access control security devices.

The Soyal AR-837-EA can detect use of picture of another person, fake ID cards and RFID cards, which are commonly used in spoofing attacks. It monitors the card’s waveform, checks the card’s frequency, and detects the card’s signal wavelength. If any of these parameters do not match with those programmed into the system, then it will not allow access to the restricted area.

Anti-Spoofing Detection
Anti-Spoofing Detection

Specification

Product Parameters Product Specification
Frequency 125kHz/ 13.56MHz / Dual Band (125kHz & 13.56MHz)
UID Bits 24-64 Bits
RF Reading Range 125kHz: 5-15 cm; 13.56MHz: 2-5 cm; Dual Band: 2-15 cm
Crypto 13.56MHz / Dual Band: CC Certification: AES Crypto comply with EAL5+
Communication Host: RS485, TCP/IP, POE, SSC
Serial: TTL UART
Wiegand Input: Wiegand 26-64
Wiegand Output: Wiegand Data 0, Data 1 and Arming Output
D1/D0 D1: Egress X2 / Door Status X2
Relay Output: Door Lock Relay / Alarm Relay
Open Collect Output: Arming Output / Security trigger signal / Duress
Output / Alarm Output / Wiegand Port open door
Doors 2
User Capacity / Floors Number 16,000 Users/64 Floors (Default value)；
32,000 Users/32 Floors；
65,000 Users/16 Floors
Event Log 32,000
Power Voltage 9-24VDC
Indicator 6 LED (Green/ Red)；Buzzer: 1
Tamper Limit switch (1 Form C/ 1000mA / 30VDC)
Housing Material ABS
LCD Panel 128*64 (4 line messages, 16 Characters each line)
Keypad Illumincated Rubber
Dimension(mm) 128(H)X147(W)X60(D)
Ingress Protection IP65
Operating Temperature -20℃ ~ +70℃
Verification Speed 1:3000 < 3.0 Sec
Face Capacity: 3000
Camera RGB

Downloads

AR-837-EA Datasheet

Features

  • Graphic Display Multi-Function Proximity Controller
  • Dual cameras live dynamic face expression detection access denied when
    using pictures, videos, and fraud detection systems
  • Access Controller support WEB setting and Graphic Animation feature
  • Built-in Door Relay, Alarm Relay and Duress Output with multiple outputs
  • Face mask wearing is allowed to access
  • Support TCP/IP and RS-485
  • Two sets of UART portBmaking it more flexible with peripheral devices:
    • I/O Module
    • Floor Control Panel
    • LED Display
    • Infrared Thermo Camera
  • Support Multi-Credential mode Face Recognition, Card only, Card or PIN, or CARD and PIN
  • Built-in multipurpose control modes
    • One door
    • Two Door with Wiegand Reader
    • Multiple Doors with multi-door control panel
