AR-888-UL

Description




Soyal Access Control Distributor in Pakistan

Soyal access control distributor is Iot Systems in Pakistan, Iot Systems are the first mover which brings the latest and most secure technologies introduced in Pakistan. An IT Company which has industry-specific expert which have sufficient support from brands that they provide and install

Soyal AR-888-UL
Dual-Band QR Code Reader

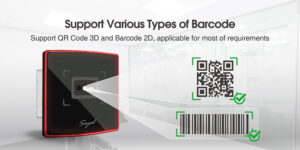

Support Various Type of Barcodes

The AR-888-UL reader is a new generation of access control reader. It supports various types of barcodes, including 1D and 2D barcodes, QR code, and Data Matrix.

The AR-888-UL reader can read all types of barcodes from the same distance. It features a high reading speed and a long reading distance. The user interface is simple and easy to use.

The AR-888-UL reader can meet various needs in the application field of access control systems for different purposes, such as logistics, warehouse management, production line management etc.

Support-Various-Type-of-Barcodes
Support Various Type of Barcodes

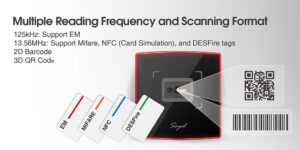

Multiple Reading and Frequency Format

RFID tags are used in access control readers to identify the person and grant them access.

SOYAL AR-888-UL is an RFID tag developed by SOYAL that has been specifically designed for use in access control readers. It has a unique feature of enabling the user to switch between two different modes of operation.

It is important to know that there are two different formats for RFID tags, namely ISO 14443A and ISO 14443B. These two formats are not compatible with each other and cannot be read by a single reader.

Multiple-Reading-and-Frequency-Format
Multiple Reading and Frequency Format

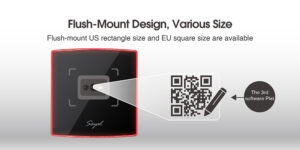

Flush Mount Design

The SOYAL AR-888-UL is a flush mount design that can be used in a variety of spaces.

The SOYAL AR-888-UL is a flush mount design that can be used in a variety of spaces. It has an integrated LED light, so it can be used as both a ceiling and wall light. The LED light is available in different colors and has three levels of brightness.

The SOYAL AR-888-UL is made with aluminum alloy, so it’s lightweight but sturdy enough to withstand the test of time. The aluminum also helps to keep the fixture cool while it’s on, which means there are no worries about getting burned.

Flush Mount Design
Flush Mount Design

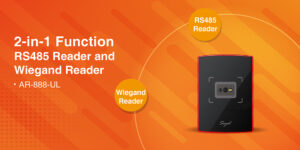

Support Wiegand and RS-485 Format

SOYAL AR-888-UL is a new generation of RFID reader. It supports Wiegand and RS-485 communication interface.

The SOYAL AR-888-UL is a new generation of RFID reader that supports both Wiegand and RS-485 communication interfaces. The reader also has an integrated antenna and can be powered by a PoE switch or POE injector, making it more convenient for installation and use.

A photoelectric sensor can be added to the reader for the purpose of detecting people in the vicinity, which will help prevent unauthorized access to areas where sensitive data is stored.

Support Wiegand and RS-485 Format
Support Wiegand and RS-485 Format

Specification

Product Parameters Product Specification
Frequency 125kHz/ 13.56MHz / Dual Band (125kHz & 13.56MHz)
UID Bits 24~32 (Adjustable)
RF Reading Range 125kHz: 5-15 cm; 13.56MHz: 2-5 cm; Dual Band: 2-15 cm
QR Code Scan Distance 5-20cm
Read/Write 125kHz: Read Only; 13.56MHz: Read/Write; Dual Band: Read/Write
Crypto 13.56MHz / Dual Band: CC Certification: 3DES Crypto comply with EAL4+
Communication Host: RS485, SSC (Soyal Security Communication)
Serial: UART Port
Wiegand Input:Wiegand 24~34 (support external Wiegand Keyboard)
Wiegand Output: Wiegand Data 0, Data 1
D1/D0 D1: LED (Red)
LED (Green)
Buzzer
Relay Output: NO
Open Collect Output: YES
Power Voltage 9-24VDC
Indicator LED (Green/ Red);Buzzer: 1
Tamper NO
Housing Material ABS+PC Panel
LCD Panel 128*64 (4 line messages, 16 Characters each line)
Keypad Illumincated Rubber
Dimension(mm) US:110(H)X81(W)X34(D)
EU:88(H)X86(W)X34(D)
Ingress Protection IP65(Surface)
Operating Temperature -20℃ ~ +70℃

Downloads

AR-888-UL Datasheet

Features

  • Dual-Band QR Code Reader
  • Built-in RFID and QR Code scanning technology, providing temporary access by QR Code and normal access by RFID card
  • Support Various Type of Barcodes and Support QR Code 3D Barcode 2D
  • Multiple Reading Frequency and scanning format
    • 125kHz: Support EM
    • 13.56MHz: Suppport Mifare, NFC(Card Simulation), and DESFire tags
    • 2D Barcode
    • 3D QR Code
  • Flush Mount Design
  • QR Code customization support various QR Code customization
  • Suitable Visitor Management SystemBuilt-in QR Code generator function combines with number access limit
