Soyal-AR-888-H

AR-888-H

Category: Tags: ,

Description




Soyal Access Control Distributor in Pakistan

Soyal access control distributor is Iot Systems in Pakistan, Iot Systems are the first mover which brings the latest and most secure technologies introduced in Pakistan. An IT Company which has industry-specific expert which have sufficient support from brands that they provide and install

Soyal AR-888-H
Flush-Mount Backlight Multi-Function Controller

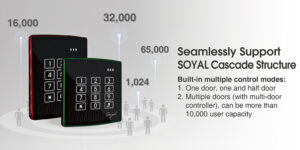

Seamless Support SOYAL Cascade Structure

Soyal Cascade Structure is a new and improved version of the original Soyal AR-888-H. This new version has an updated and sleek design, more features, and more advanced technology.

It has built-in multiple control modes:
1.1 Door
2.1/5 Door
3.Multiple Door

Seamless Support SOYAL Cascade Structure
Seamless Support SOYAL Cascade Structure

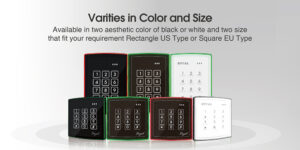

Varieties in Color and Size

Soyal AR-888-H is the latest version of Soyal’s access control device, which has been popular in the market for years. The new device features a variety of colors, different sizes and a new design to make it more attractive to customers.

Varieties in Color and Size
Varieties in Color and Size

Bi-Color LED Frame Indicator

The Soyal AR-888-H is an access control device that features bi-color LED frame indicator for more intuitive operation.

The AR-888-H is a bi-color LED frame indicator. It helps the user to easily identify the current status of the access control device. The frame will be green when there is access granted & red when there is no access granted.

Bi-Color LED Frame Indicator
Bi-Color LED Frame Indicator

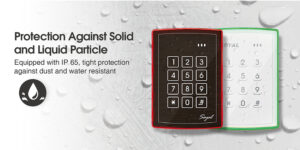

Protection Against Solid and Liquid Particles

The Soyal AR-888-H is an access control device that has been manufactured to provide protection against solid and liquid particles. This product has been designed with the intention of making it easy to install and use. It also provides protection for any building’s system from unauthorized intrusion or infiltration by intruders or intruding substances.

This product was designed for use in any building’s system as it provides protection against both solid and liquid particles, which makes it cost effective as well as easy to install. This product has also been designed with the intention of being compact so as not to take up too much space in the system of the building, which makes it perfect for integration into all kinds of systems without compromising on its v=basic functionality.

Protection Against Solid and Liquid Particles
Protection Against Solid and Liquid Particles

Specification

Product Parameters Product Specification
Communication Interface Host: RS485/9600 bps (N, 8, 1)
Serial: TTL Output /4800 bps (N, 8, 1)
Frequency 125kHz/13.56MHz
Supported Tags 125kHz: ISO18000-2 which is EM4001 and EM4095 compatible
13.56MHz: ISO 14443 Mifare Ultralight, DESFire EV1 NFC (card simulation)
Crypto 13.56MHz: CC Certification-
3DES Crypto comply with EAL4+
RFID Reading Range 125kHz: 2-5 cm; 13.56MHz: 5-15 cm
UID Bits 24~32 (Adjustable)
D1/D0 D1: Egress / Door State
Relay Output: Door Lock Relay
D0: Door Lock Output / Duress Output / Alarm Output Arming Output
Door/Floors Number 1.5 Doors / 32 Floors
User Capacity 3000
Logs 1500
Indicator LED: LED Frame(Green&Red)/3LED(White
Buzzer: 1
Tamper Button Switch(Type A/50mA/30VDC)
Housing Material Housing: Anti-Scratch PC+ABS
Keypad: PC(Unified Body)
Dimension(mm) US:110(H)X81(W)X34(D)
EU:88(H)X86(W)X34(D)
Ingress Protection IP65(Surface)
Power Voltage 9-24VDC
Operating Temperature -20℃ ~ +70℃

Downloads

AR-888-H Datasheet

Features

  • Flush-Mount Backlight Multi-Function Controller
  • Built-in multiple control modes:
    • One door and one and half door
    • Multple doors with multiple controller
  • Multiple access mode:
    • Card only
    • card or password
    • card and password
  • Protection against solid and liquid particles with IP65 tight protection against dust and water
  • Each Controller can set up up to 3 masters card
  • Capture User picture with integrated IP Camera
  • Support DESFire tags (Crypto comply with EAL4+)
  • Support RS485 communication encryption, SSC(Soyal Security Communication)
  • Can be an encrypted RS485 reader if utilized with other brand’s controller
