AR-661-UG

Description




Soyal Access Control Distributor in Pakistan

Soyal access control distributor is Iot Systems in Pakistan, Iot Systems are the first mover which brings the latest and most secure technologies introduced in Pakistan. An IT Company which has industry-specific experts which has sufficient support from brands that they provide and install

Soyal AR-661UG Access Control Reader

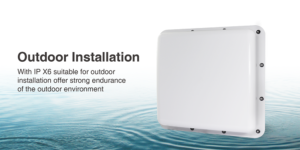

Outdoor Installation

With IPX6 suitable for outdoor installation offer strong endurance of the outdoor environment

The outdoor installation long-range high-frequency reader is a device that will read the tags on any object.

The outdoor installation long-range high-frequency reader can be used in many different ways. It can be used to track goods as they are shipped, monitor inventory, and track the movement of people and vehicles in a store.

AR-661-UG-Outdoor Installation
AR-661-UG-Outdoor Installation

Automated tollgate vehicle identification

Tollgate systems have been in use for a long time to collect tolls. However, the implementation of tollgate systems is not uniform and there are many different types of tollgates in use.

The automated tollgate vehicle identification reader is an electronic device that captures vehicle data such as license plate information, registration number and other data points, which can be used to identify the vehicle.

The Soyal AR-661-UG is a type of automated tollgate vehicle identification reader that has been designed for use the tag through which it reads whether vehicle can access the gate or not. The device can work on walk throughs a car with 30km/h speed can pass through without stopping.

Automated Tollgate vehicle identification
Automated Tollgate vehicle identification

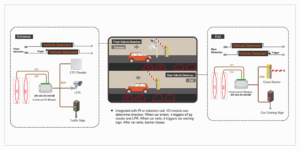

Detection of Vehicle Direction

A vehicle tag is a form of RFID that is used for identification purposes. It contains a unique ID code which can be detected by an RFID reader. The Soyal AR-661-UG is a long-range reader that can detect the presence of an object from up to 8 meters away.

This long-range reader system is designed to be attached to the ceiling or wall and has a field of view of 60 degrees. This means it can detect tags from all directions and angles, without being set up in any particular direction.

Detection of Vehicle Direction
Detection of Vehicle Direction

Smart Visitor Management Solution

The visitor management system is a smart way to efficiently manage visitors. It is a software that allows you to track, manage and control your visitors in real-time.

Visitor management systems are an important tool for any company that wants to increase security and efficiency.

This section discusses the benefits of using a visitor management system, specifically the Soyal AR-661-UG. This system allows you to track and monitor your visitors via their ID card or badge which they must wear at all times while on your premises. The Soyal AR-661-UG also provides you with detailed information such as the date and time of each visit, name of visitor, duration of visit and contact information as well as any incidents or alerts which may have occurred during the visit.

Smart Visitor Management Solution
Smart Visitor Management Solution

Specification

Product Parameters Product Specification
Frequency 902- 928 MHz /865-868 MHz(Comply with Country’s Standard
Standard ISO 18000-6C
Code Formats (Standard) Wiegand 34
(Optional) RS-485: 96 bits TID, +96 bits EPC ID
Supported Tag All H3 & H4 chip tags can be used
Vehicle tags and Hand-held tags
Communication Interface Wiegand,RS485
Baud Rate 19600 bps (N, 8, 1)
Range 4-6 Meters (Adjustable 10% to 100%)
reading range will increase/decrease by different power consumption
Read/Write Read Only
Watchdog Function YES
Power Consumption 18Watts
Power Supply 12VDC
Indicator 1 LED
Housing Material ABS
Color Ivory
Dimension (mm) 228(L)x228(W)x52(H)
Ingress Protection IPX6
Cable Suggestion Power: Power Jack D.O.55*D.I.20*11(L)mm
Data: 22 AWG
Antenna Connection 50 ohm U.FL
TAG (Label) AR-TAGT99
AR-TAGCI8

Downloads

AR-661-UG Datasheet

Features

  • UHF Long Range Reader
  • Designed for outdoor environments with long reading range up to 6 meters
  • IPX6 Suitable for outdoor installation offer strong endurance of the outdoor environment
  • Automated Toll Gate and Vehicle Identification with UHF Label sticker
  • Eliminate parking lot issue with multi reader and IN/OUT direction interference
  • Suitable application for gate control over vehicles and user, one-piece design
  • Suitable for other applications:
    • Wheelchair Elevator
    • Gurney
    • Hospital Entrance that require long range access identification
  • 4 Wiegand Input and Output
