Soyal AR-837-EL
Graphic Display Proximity / QR Code Controller

Support Various Type of Barcodes in Soyal AR-837-EL

The Soyal AR-837-EL is a high-performance and cost-effective access control solution. It supports various type of barcodes, including QR code and RFID.

The Soyal AR-837-EL can be used as an access control device for a variety of applications, such as hotels, hospitals, schools, offices, warehouses or even for individual homes. Businesses can use this access control device to provide their customers with the best customer service possible.

Support Various Type of Barcodes
Support Various Type of Barcodes

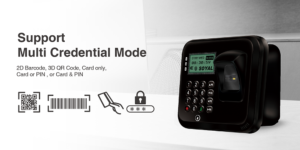

Support Multi Credentials Mode in Soyal AR-837-EL

In order to meet the needs of different customers, Soyal has designed a Multi Credentials Mode. This innovative mode enables the device to work with different types of credentials and certificates.

The new mode is more versatile and flexible than other modes, which means that it can be used for various purposes in many different industries.

Support Multi Credentials Mode
Support Multi Credentials Mode

Multiple Reading Frequency Format in Soyal AR-837-EL

The Soyal AR-837-EL is a multiple reading frequency format enabled access control device. It provides the user with a wide range of features that are not available with traditional access control devices.

Supports:
125 kHz:EM Cards
13.56 MHz:Mifare, NFC, DESFire tags
2D Barcode
3D QR Code

Multiple Reading Frequency Format
Multiple Reading Frequency Format

QR Code Customization in Soyal AR-837-EL

The Soyal AR-837-EL is a high-security access control device with QR Code customization.

The Soyal AR-837-EL is a high security access control device that has the ability to be customized with a QR code. This allows for the user to create their own codes, which can be scanned by themselves and any other authorized users of the device. This is especially helpful in many industries such as healthcare, education, and government where there are specific needs for security that this device can fulfill.

QR Code Customization
QR Code Customization

Communication Redundancy in Soyal AR-837-EL

The main difference between TCP/IP and RS-485 is that the former is a software and the latter is a hardware.

The Soyal AR-837-EL is an access control device that can communicate with other devices using TCP/IP or RS-485 protocols. The communication redundancy of these two protocols ensures that there are no failures in sending commands to the access control device, even if one of them fails.

Communication Redundancy
Communication Redundancy

Soyal Access Control Distributor in Pakistan

Soyal access control distributor is Iot Systems in Pakistan, Iot Systems are the first mover which brings the latest and most secure technologies introduced in Pakistan. An IT Company which has industry-specific expert which have sufficient support from brands that they provide and install




Specification

Product Parameters Product Specification
Frequency 125kHz/ 13.56MHz / Dual Band (125kHz & 13.56MHz)
UID Bits 24-64 Bits
RF Reading Range 125kHz: 5-15 cm; 13.56MHz: 2-5 cm; Dual Band: 2-15 cm
QR Code Scan Distance 5-20 cm
RFID Crypto 13.56MHz / Dual Band: CC Certification: AES Crypto comply with EAL5+
Communication Host: RS485, TCP/IP (Optional By Order), POE (Optional By Order), SSC
Serial: TTL UART
Wiegand Input: Wiegand 26-64
Wiegand Output: Wiegand Data 0, Data 1 and Arming Output
D1/D0 D1: Egress X2 / Door Status X2
Relay Output: Door Lock Relay / Alarm Relay
Open Collect Output: Arming Output / Security trigger signal / Duress
Output / Alarm Output / Wiegand Port open door
Doors 2
User Capacity / Floors Number 16,000 Users/64 Floors (Default value)；
32,000 Users/32 Floors；
65,000 Users/16 Floors
Event Log 32,000
Power Voltage 9-24VDC
Indicator 6 LED (Green/ Red)；Buzzer: 1
Tamper Limit switch (1 Form C/ 1000mA / 30VDC)
Housing Material ABS
LCD Panel 128*64 (4 line messages, 16 Characters each line)
Keypad Illumincated Rubber
Dimension(mm) 128(H)X147(W)X73(D)
Ingress Protection IP65
Operating Temperature -20℃ ~ +70℃
Verification Speed 1:3000 < 3.0 Sec
Face Capacity: 3000
Camera RGB

Downloads

AR-837-EL Datasheet

Features

  • Graphic Display Proximity / QR Code Controller
  • Support Various type of barcodes: QR Code 3D and barcode 2D
  • Support Multi-Credential Mode: 2D Barcode, 3D QR Code, Card only, Card or Pin or Card & Pin
  • Multiple Reading Frequency: 125kHz and 13.56MHz
  • Wide Range Effective QR Code with QR Reading distance 5-20 cm
  • Multi-Communication Interface
    • RS-485
    • TCP/IP
    • WG input and WG output
    • UART port
  • Support RS485 communication encryption
  • Built-in RFID antenna in dual band technology:
    • 125Khz EM
    • 13.56MHz ISO1443 Mifare Ultralight
    • DESFire
    • -EV1/EV2
    • NFC Card Simulation
    • ISO15693
    • Felica
