SOYAL-AR-101-PBI-L

AR-101-PBI-L

Category: Tags: , ,

Description

Soyal AR-101-PBI-L
Touch-less Infrared Sensor Push Button(Anti-Interference)

Model Variation in Soyal AR-101-PBI-L

It comes with a variety of models which gives soyal users freedom to use any kind of model according to their own needs which enables it to become customizable.

The Soyal AR-101-PBI-L is a touchless infrared access control button that is designed for use in challenging environments.

The Soyal AR-101-PBI-L is a touchless infrared access control button that features a built in proximity sensor, and provides an easy way to provide access control to multiple rooms or areas. This device can be used to replace traditional door knobs, which are often difficult to operate for people with disabilities.

The Soyal AR-101-PBI-L can be used in both residential and commercial settings and works with all major access control systems.

Model-Variation
Model Variation

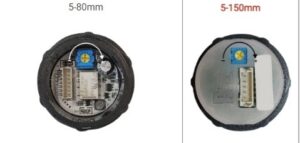

Customization in Soyal AR-101-PBI-L

The Soyal AR-101-PBI-L is a device that helps people adjust the infrared sensor in their homes.

The Soyal AR-101-PBI-L is a customisable infrared sensor that can be adjusted to suit the needs of the user. The sensor has been designed for use with infrared radiators and is able to measure the temperature of objects in the near field.

Customization-Adjustable-sensor
Customization-Adjustable-sensor

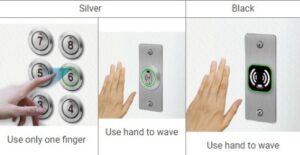

Multiple Ways To Operate in Soyal AR-101-PBI-L

Soyal AR-101-PBI-L has multiple ways to operate with different variations:
1)Use Only One Finger
2)Use Hand To Wave

Multiple-ways-to-operate
Multiple ways to operate

Applications Range in Soyal AR-101-PBI-L

Housing
Lift Control
Commercial
Soyal-Applications Range
Applications Range

Soyal Access Control Distributor in Pakistan

Soyal access control distributor is Iot Systems in Pakistan, Iot Systems are the first mover which brings the latest and most secure technologies introduced in Pakistan. An IT Company which has industry-specific expert which have sufficient support from brands that they provide and install




Specification

Product Parameters Product Specification
Active Distance 0.5-8cm
Voltage 9 VDC – 24 VDC
Current DC 12V Standby: 30mA / Max. during activation: 75mA
Contact Capacity 30VDC 1A / 125VAC 0.3A
Output Contact 1 Form C(1A / VAC/VDC 30V)
Dimension(mm) Touch-less Infrared Sensor Push Button:39(H)X39(W)X29(D);
Stainless Steel Panel (SLIM US TYPE):108(H)X41(W)X2(D)
Stainless Steel Panel (Wide US Type):122(H)X72(W)X2(D)
Stainless Steel Panel (Square EU Type):86(H)X86(W)X2(D)
Temperature -20℃ ~ +65℃
Igress Protection NO

Downloads

AR-101-PBI-L Datasheet

Features

  • Flush mounted design is thin and aesthetics, Bi-cloro LED ring shine and light your life.
  • Infrared sensor design can trigger door lock without touching, suited in fields with high hygienic standards.
  • Three types for installation on various sites: Slim type, US type and EU type.
  • Modular design offer the flexibility to install it on the decoration surface on site rather than matching it with standard panels only.
  • The new button we designed is suitable for installation as both door exit button and also lift floor button.
  • The physical contact feature allows door open under no power supply situation just by pressing the button.
  • Silent Operation Mode: Push Button Mute and All Mute
  • Compared to the previous version, the new design looks more modern and more metallic feel. The sensing distance can be adjusted from 0.5cm to 8cm
