AR-327-E

Description

Soyal AR-327-E Access Control

Communication Redundancy in Soyal AR-327-E

The Soyal AR-327-E Pakistan has been designed with this idea in mind, and it offers network redundancy in two different ways: by using dual power supplies and by using dual Ethernet ports for each node.

Communication redundancy is a key aspect in the design of networks. It is a process by which data is transmitted more than once, with the hope that it will be received correctly at the destination. Communication redundancy can be achieved in many ways, but one of the most popular methods is to use redundant physical links between nodes.

Communication Redundancy

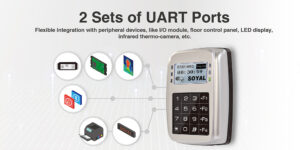

2 Sets Of UART Port in Soyal AR-327-E

The AR-327-E is a two set of UART port module.

The AR-327-E is a wireless UART port that uses 2.4GHz RF technology to transmit data from one device to another. It is compatible with most computers and devices that have a USB port.

The AR-327-E has two sets of UART ports – one for transmitting and one for receiving data. These ports work in sync with each other so that both the sending and receiving devices get the same information at the same time, ensuring smooth communication between them.

Soyal-AR-327-E
2 Set of UART Port Soyal-AR-327-E

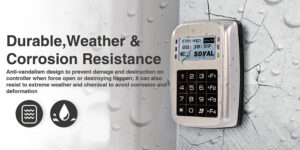

Durable Weather and Corrosion Resistance in Soyal AR-327-E

The Soyal AR-327-E is a new generation of stainless steel that has been developed to withstand the most corrosive environments. It was designed to address the problems with corrosion resistance and durability in harsh environments, such as salt water or chlorinated water.

The key features that make this steel so durable are its high chromium content and its low nickel content. The chromium provides protection against corrosion and the low nickel content prevents any sensitization of the material.

Durable & Weather corrasion resistance Soyal-AR-327-E
Durable & Weather corrasion resistance

HTTP Webserver Remote Management in Soyal AR-327-E

The Soyal AR-327-E is a powerful HTTP web server that provides remote management. With this device, you can manage your web server remotely and securely.

The Soyal AR-327-E is an advanced HTTP web server that offers remote management capabilities. The device allows you to connect to your web server remotely and securely, so you can manage it from any location. The AR-327-E has a built in firewall and supports HTTPS protocol for secure data transmission.

HTTP-WEBSERVER-AR-327-E
HTTP-WEBSERVER-REMOTE-MANAGEMENNT

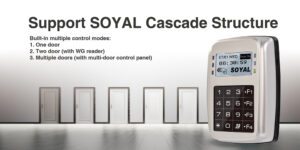

Support Soyal Cascade Structure in Soyal AR-327-E

The Soyal Cascade Structure is a new way of organizing your thoughts and ideas in a hierarchical manner. It is much more visual than the traditional linear structure.

The Soyal Cascade Structure can be used to show how one idea leads to another, or how different parts of an organization are related to each other. It also provides a way for you to visualize the flow of your thoughts and ideas.

SUPPORT SOYAL CASCADE STRUCTURE
SUPPORT SOYAL CASCADE STRUCTURE

Soyal Access Control Distributor in Pakistan

Soyal access control distributor is Iot Systems in Pakistan, Iot Systems are the first mover which brings the latest and most secure technologies introduced in Pakistan. An IT Company which has industry-specific expert which have sufficient support from brands that they provide and install




Features

  • Multi-Function Graphic Proximity Controller
  • Communication Redundancy
  • 2 Sets of UART Ports
  • Eight functional keys for Time Attendance
  • Communication Redundancy
  • Support TCP/IP and RS-485
  • HTTP WEB Server Remote Management
  • Support Soyal Cascade Structure with built-in multiple controller modes:
    • One Door
    • Two Door with (with WG Reader)
    • Multiple doors with multiple door control panel
  • Support Multi-Credential mode Face Recognition, Card only, Card or PIN, or CARD and PIN
  • Built-in multipurpose control modes
    • One door
    • Two Door with Wiegand Reader
    • Multiple Doors with multi-door control panel
  • Each Controller can set up up to 3 masters card
  • Built-in watchdog, real time clock, anti-vandalism switch, ingress
  • Supported frequency: 125kHz, 13.56MHz and dual band
  • Multiple access mode: card only, card or password, card and password
  • Support floor control: 64 / 32 / 16 floors

Specification

Product Parameters Product Specification
Frequency & Standard 125kHz: EM Standard and HID Prox(Customization)
13.56MHz: ISO 14443A, ISO 15693, DESFire, Felica, .ISO7816-4, NFC(Crad simulation), Customization(HID Prox and HID iCLASS)
Reading Range 125kHz: 3-7 cm
13.56MHz: 1-3 cm
Power Consumption 24VDC, LESS THAN 5W
Communication RS-485/9600 bps(N,8,1)
Ethernet 10/100M Base T Module(Option)
Serial Port UART X 2 ( TTL 4800~115200)
Alarm Time Toggle, 1-600 Sec.
User Capacity / Floors Number 16,000 Users
(Option)32,000/65,000
Event Log 32,000
External Reader 1 Wiegand Port
Anti-Pass Back YES
Real Time Clock YES
Digital Input 2 Egress(R.T.E.) / 2 Door contact
Indicator 6 LED & 1 Beeper
Operation Mode StandAlone / Networking
Dimension(mm) 140(L)X92(W)X40(H)
Time Zoen 63
Operating Temperature -20℃ ~ +65℃
Relay Output Alarm Relay/ Lock Relay
LCD Panel 128*64 (4 Lines messages, 16 Characters each line)
Lift Control 64 Floors, 16,000 Users
Housing Material ZINC Alloy

Downloads

AR-327-E Datasheet
