SOYAL AR-837-E/EE

Graphic Display Multi-Function Proximity Controller

8 Sets of Time Attendance

The Soyal AR-837-E/EE is a 3D Controller. It has buttons for navigation, interaction, and selection.

The Soyal AR-837-E/EE is a controller that has buttons for interaction, and selection. The AR-331-H is the perfect companion to the headset as it allows you to navigate your way through virtual worlds without ever taking off your headset.

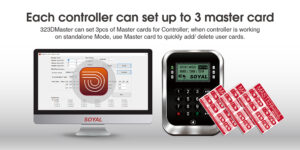

Each Controller Can Set up to 3 Master Cards
Each Controller Can Set up to 3 Master Cards

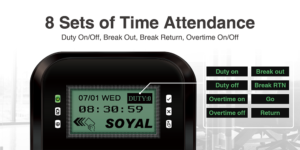

8 Sets of Time Attendance

Duty-On
Duty-Off
Overtime-On
Overtime-Off
Break-Out
Break-RTN
Go
Return

8 Set of Time Attendace
8 Set of Time Attendance

Multi-Language Support

The Soyal AR-837-E/EE is a smart access control that can be used for anti-vandalism and anti-theft purposes.
Flexible Integration with peripheral devices like I/O module, floor control panel, LED Display, Infrared thermal camera, etc.

The Soyal AR-837-E/EE is a smart access control system that integrates with peripheral devices like fire alarms.
It’s a one of its kind product that provides the user with the flexibility to integrate with any existing security or safety devices on their premises.
The Soyal AR-837-E/EE is a cost-effective and reliable solution for any business looking for an access control system.

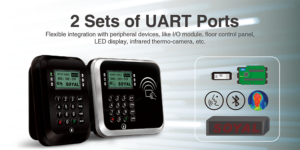

2 Sets Of UART Port
2 Sets Of UART Port

Soyal Access Control Distributor in Pakistan

Soyal access control distributor is Iot Systems in Pakistan, Iot Systems are the first mover which brings the latest and most secure technologies introduced in Pakistan. An IT Company which has industry-specific expert which have sufficient support from brands that they provide and install




Specification

Product Parameters Product Specification
Frequency 125kHz/ 13.56MHz / Dual Band (125kHz & 13.56MHz)
UID Bits 24-64 Bits
RF Reading Range 125kHz: 5-15 cm; 13.56MHz: 2-5 cm; Dual Band: 2-15 cm
Crypto 13.56MHz / Dual Band: CC Certification: AES Crypto comply with EAL5+
Communication Host: RS485, TCP/IP(Optioal), POE(Optioal), SSC
Serial: TTL UART
Wiegand Input: Wiegand 26-64
Wiegand Output: Wiegand Data 0, Data 1 and Arming Output
D1/D0 D1: Egress X2 / Door Status X2
Relay Output: Door Lock Relay / Alarm Relay
Open Collect Output: Arming Output / Security trigger signal / Duress
Output / Alarm Output / Wiegand Port open door
Doors 2
User Capacity / Floors Number 16,000 Users/64 Floors (Default value)；
32,000 Users/32 Floors；
65,000 Users/16 Floors
Event Log 32,000
Power Voltage 9-24VDC
Indicator 6 LED (Green/ Red)；Buzzer: 1
Tamper Limit switch (1 Form C/ 1000mA / 30VDC)
Housing Material ABS
LCD Panel 128*64 (4 line messages, 16 Characters each line)
Keypad Illumincated Rubber
Dimension(mm) AR-837-E:128(H)X94(W)X40(D)
AR-837-E:128(H)X147(W)X60(D)
Ingress Protection IP65
Operating Temperature -20℃ ~ +70℃
Camera NO

Downloads

AR-837-E/EE Datasheet

Features

  • Dual communication interfaces: RS485 and Ethernet(10/100M Base T)
  • Built-in watchdog, real time clock, anti-vandalism switch, ingress protection, alarm setting, holiday edit, auto opendoor time zone, door group, door status DI, anti-passback function and duress code & output
  • Support user capacity: 16,000 / 32,000 / 65,000 users
  • In case Ethernet disconnects, controller is still able to identify UID and record event log
  • Two doors control: Two sets of push button and door status, relay
    output for lock and WG output for reader
  • Supported frequency: 125kHz, 13.56MHz and dual band
  • Standalone / Networking is switchable during working
  • Communication Redundancy : Support TCP/IP and RS485 interface, when main communication disconnects, deputy communication will work to maintain normal work
