AR-661-U

Description

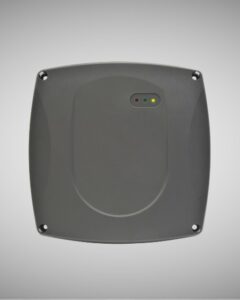

Soyal AR-661U
Access Control Reader

Outdoor Installation in Soyal AR-661U

With IPX6 suitable for outdoor installation offer strong endurance of the outdoor environment

The outdoor installation long-range high-frequency reader is a device that will read the tags on any object.

The outdoor installation long-range high-frequency reader can be used in many different ways. It can be used to track goods as they are shipped, monitor inventory, and track the movement of people and vehicles in a store.

SOYAL-AR-661-U
Ingress Protection

Automated tollgate vehicle identification in Soyal AR-661U

Tollgate systems have been in use for a long time to collect tolls. However, the implementation of tollgate systems is not uniform and there are many different types of tollgates in use.

The automated tollgate vehicle identification reader is an electronic device that captures vehicle data such as license plate information, registration number and other data points, which can be used to identify the vehicle.

The Soyal AR-661-U is a type of automated tollgate vehicle identification reader that has been designed for use the tag through which it reads whether vehicle can access the gate or not. The device can work on walk throughs a car with 30km/h speed can pass through without stopping.

Detection of Vehicle Direction in Soyal AR-661U

A vehicle tag is a form of RFID that is used for identification purposes. It contains a unique ID code which can be detected by an RFID reader. The Soyal AR-661-U is a long-range reader that can detect the presence of an object from up to 60cm.
This long-range reader system is designed to be attached to the ceiling or wall and has a field of view of 60 degrees. This means it can detect tags from all directions and angles, without being set up in any particular direction.

SOYAL-RFID-LONG-RANGE
RFID Long range reading

Smart Visitor Management Solution in Soyal AR-661U

The visitor management system is a smart way to efficiently manage visitors. It is a software that allows you to track, manage and control your visitors in real-time.

Visitor management systems are an important tool for any company that wants to increase security and efficiency.

This section discusses the benefits of using a visitor management system, specifically the Soyal AR-661-U. This system allows you to track and monitor your visitors via their ID card or badge which they must wear at all times while on your premises. The Soyal AR-661-U also provides you with detailed information such as the date and time of each visit, name of visitor, duration of visit and contact information as well as any incidents or alerts which may have occurred during the visit.

Soyal Access Control Distributor in Pakistan

Soyal access control distributor is Iot Systems in Pakistan, Iot Systems are the first mover which brings the latest and most secure technologies introduced in Pakistan. An IT Company which has industry-specific experts which has sufficient support from brands that they provide and install




Specification

Product Parameters Product Specification
Frequency 125KHz
Standard EM Standard
Supported Tag 125KHz EM tags
Communication Interface Wiegand / 34+4, ASYNC
Baud Rate 9600bps(N,8,1)
Reading Range 30-60cm
Read/Write Read Only
Watchdog Function Yes
Power Consumption <3W
Power Supply 9-24VDC
Indicator 3 LED,
1 Beeper
Housing Material ABS/Gray
Domension(mm) 230(L)x230(W)x39(H)
Net Weight 1000 Gram
Ingress Protection IP65
Temperature -20℃ ~ +65℃

Downloads

AR-661-UG Datasheet

AR-661-UG Manual

Features

  • Long Range Proximity Reader
  • Interface of the Proximity Reader have WG and ABA-II etc., depending on the controller to make adjustments
  • Built-in Watchdog to prevent system from hanging
  • Flexible to integrate with SOYAL or other access control system
  • 3 LED and 1 beeper for identification
