TISO-CYCLONE-L

CYCLONE-L

Category:

Description




Tiso Turnstile Distributor In Pakistan

With access control the doors may usually use but the speed gates are also being used. The quality speed gates and turnstile manufacturer are Tiso and Iot systems is bringing it into the Pakistan.

Tiso Half Height Turnstile CYCLONE-L Features

Electro-mechanical drive

The Tiso Cyclone-L outdoor half height turnstile is a new and improved version of the Tiso Cyclone-S. It has the same features as the Tiso Cyclone-S, but it is more durable and can withstand harsh weather conditions.

The Tiso Cyclone-L outdoor half height turnstile has a durable, electro-mechanical drive that is made from steel and zinc plated with nickel. This steel construction makes it resistant to rust, corrosion and other harsh weather conditions.

The drive also provides an increased lifespan for the turnstile. The design of the drive ensures that there is no need for lubrication or maintenance for up to 20 years in normal use.

TISO-Cyclone-L
Electro-Mechanical Drive of TISO-Cyclone-L Outdoor half height turnstile

Bi-Directional Operation

The Tiso Cyclone-L is a bi-directional waist height turnstile that can be operated by either side and suitable for outdoor operation. This makes it ideal for use in locations where the flow of pedestrians needs to be controlled in both directions, such as at the entrance or exit of a building.

The turnstile is designed with an eye to safety and security. The rotating arm has an anti-pinching design that stops fingers from getting caught in the mechanism. It also features a built-in emergency stop button for emergencies and power failure situations.

TISO-Cyclone-L
Bi-Directional Operation TISO-Cyclone-L Outdoor half height turnstile

Integration with any type of access control and ID systems

The Tiso Cyclone-L waist height turnstile is a cost-effective way to control access to your facility. This turnstile is designed for both indoor and outdoor use. It can be integrated with any type of access control system and ID system, making it a versatile turnstile solution for your business.

TISO-Cyclone-L

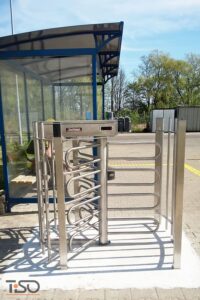

TISO-Cyclone-L Outdoor half height turnstile

Specification

Product Parameters Product Specification
Dimension (WxLxH) mm 1450X1350X1314(Model X)
1450X1168X1314(Model Y)
Crossing Capacity in free access mode(person/min) 60
Crossing Capacity in single access mode(person/min) 20
Mechanism Servo Driven(motorized)
Passage width 533
Standard Housing Brushed SS AISI 304
Available Housing Brushed SS AISI 316
Brushed SS AISI 304
Brushed SS AISI 316
Powder coated RAL
Voltage 240V AC 50/60 Hz
12V DC
Maximum Power consumption 55 Watts
MCBF 1500,000 cycles
Enclosure Rating IP41-54*
Operating Temperature +1°C ~ +40°C

Downloads

Tiso Half Height Turnstile CYCLONE-TWIN-L Datasheet

Tiso Half Height Turnstile CYCLONE-L Datasheet

Features

  • Can operate outdoor and indoor that allows to use it without any restrictors in any season and weather condones
  • Movement is bi directional
  • Wide range of available material and clang, type of rotor assembly
  • Low power consumption and low noise operation
  • Any access control systems upon request (e.g. passage counter, RFID/Proximity/Biometric readers, coin acceptor, push button, barcode and QR-code reader)
