Tiso Turnstile Distributor In Pakistan

IOT SYSTEMS PAKISTAN are Proud distributor of TISO TurnstileWith access control the doors may usually use but the speed gates are also being used. The quality speed gates and turnstile manufacturer are Tiso and Iot systems is bringing it into Pakistan.

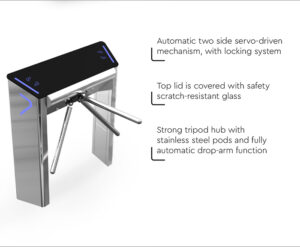

TISO ONYX-M

TISO Tripod Turnstile ONYX-M Features

Two Side Drive in ONYX-M

The TISO ONYX-M is a bi-directional motorized tripod turnstile with panic/bar drop function. It is designed to provide security and access control for large public spaces, such as airports, stadiums, and other high-traffic areas. The turnstile has a built-in panic button that allows people to quickly exit the area in case of emergency. It also has a bar drop function that automatically drops the arm when it senses an obstruction. This makes it an ideal solution for controlling crowds in busy areas and ensuring safety of people in distress situations.

TISO Turnstile ONYX-M
TISO Turnstile ONYX-M

Low Noise Operation in TISO ONYX-M

The TISO ONYX-M is a revolutionary new product that offers whisper quiet, low noise operation. This product has been designed to reduce the sound of running machinery and other equipment in industrial, commercial and residential settings. It features advanced acoustic dampening technology that helps to reduce the sound level of any environment by up to 50%. With this product, you can enjoy a quieter working environment without sacrificing performance or productivity. The TISO ONYX-M is the perfect solution for businesses looking for a way to reduce noise levels while still providing high quality performance.

TISO Turnstile ONYX-M
TISO Turnstile ONYX-M

ONYX-M Integration with any type of access control and ID systems

The integration of Access Control with Turnstile is becoming increasingly important in today’s security systems. TISO ONYX-M is one such access control system that provides a comprehensive solution for controlling access to premises. It integrates with turnstiles to ensure that only authorized personnel can enter the premises and unauthorized personnel are prevented from entering. The system also provides real-time monitoring and reporting, making it ideal for companies that need to keep track of who is entering and exiting their premises at any given time. With the help of TISO ONYX-M, companies can ensure that their premises are secure and protected from unauthorized access.

TISO Turnstile ONYX-M
TISO Turnstile ONYX-M

Specification

Product Parameters Product Specification
Dimension 802X1005X1076
Crossing capacity in free access mode, person/min 60
Crossing capacity in single access mode, person/min 25
Passage Width 600mm
Mechanism Servo-Driven
Blocking Mechanism Two electromechanical stoppers
Emergency Mode(When Power Goes Off Arms Drop when Power Goes Off
Drop Arm function Drop arm function can be activated when power is on Drop arm function activates automatically when power goes off
Available Housing Brushed SS AISI 316 Polished SS AISI 304 Polished SS AISI 316 Powder coated (any RAL up on request)
Voltage AC (100-240)V, 50/60Hz; DC source 12 V
Maximum Power Consumption 55W
Enclosure Rating IP41*
MCBF, Cycles 1500000

Downloads

Tiso Tripod Turnstile ONYX-M Datasheet
