STAR-GS

Category:

Description




Tiso Turnstile Distributor In Pakistan

With access control the doors may usually use but the speed gates are also being used. The quality speed gates and turnstile manufacturer are Tiso and Iot systems is bringing it into the Pakistan.

Tiso Half Height Turnstile STAR-GS Features

TISO Half Height Turnstile STAR-GS Features

Motorized Operation

The Tiso STAR-GS waist height turnstile is a self-service entrance that can be used as an alternative to manned gates. This turnstile has a higher throughput than regular manned gates and also has a better level of customer satisfaction due to its convenience and accessibility.

TISO-STAR-GS

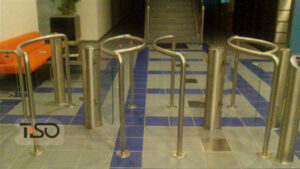

Motorized operation of TISO STAR-GS-waist height turnstile

Bi-Directional Operation TISO Waiste Height STAR-GS Turnstile

The Tiso STAR-GS is a bi-directional waist height turnstile that can be operated by either side. This makes it ideal for use in locations where the flow of pedestrians needs to be controlled in both directions, such as at the entrance or exit of a building.

The turnstile is designed with an eye to safety and security. The rotating arm has an anti-pinching design that stops fingers from getting caught in the mechanism. It also features a built-in emergency stop button for emergencies and power failure situations.

TISO-STAR-GS

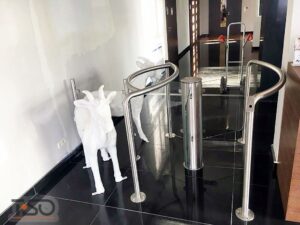

Bi-Directional Operation TISO-STAR-GS-waist height turnstile

STAR-GS Integration with any type of access control and ID systems

The Tiso STAR-GS waist height turnstile is a cost-effective way to control access to your facility. This turnstile is designed for both indoor and outdoor use. It can be integrated with any type of access control system and ID system, making it a versatile turnstile solution for your business.

TISO-STAR-GS
TISO-STAR-GS-waist height turnstile

Specification

Product Parameters Product Specification
Dimension (WxLxH) mm 1350X1440X1050
Crossing Capacity in free access mode(person/min) 40
Crossing Capacity in single access mode(person/min) 20
Mechanism Servo Driven(motorized)
Passage width 560
Standard Housing Brushed SS AISI 304
Available Housing Brushed SS AISI 316
Brushed SS AISI 304
Brushed SS AISI 316
Powder coated RAL
Wooden Cover
Voltage 240V AC 50/60 Hz
12V DC
Maximum Power consumption 55 Watts
MCBF 1500,000 cycles
Enclosure Rating IP41-54*
Operating Temperature +5°C ~ +40°C

Downloads

Tiso Half Height Turnstile STAR-GS Datasheet

Features

  • Mechanism of operation is motorized
  • Movement is bi directional
  • Integration with any type of access control and ID systems
  • Low power consumption and low noise operation
  • Wide range of accessories
